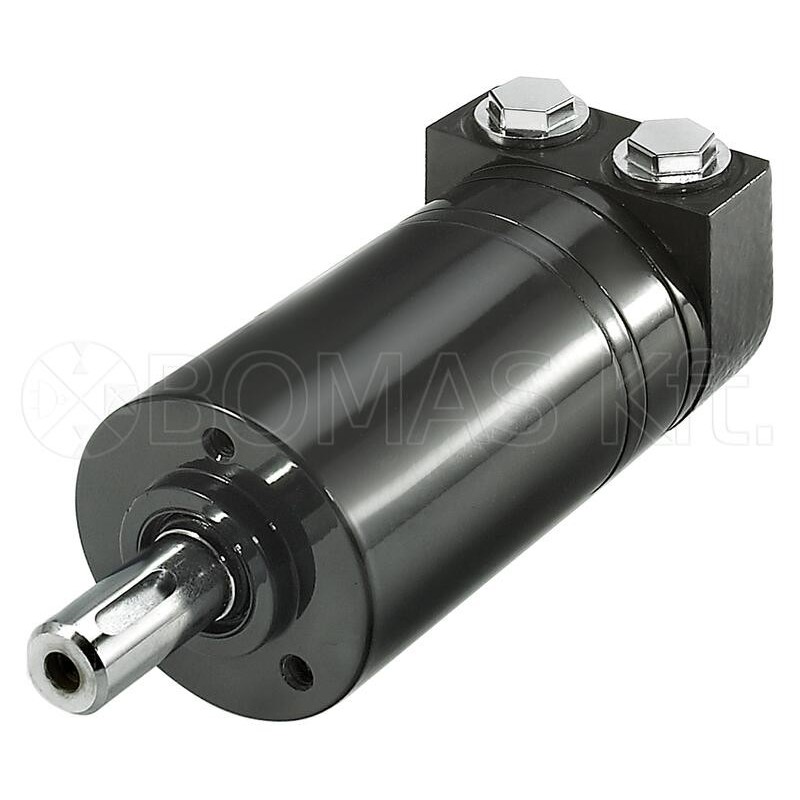

Danfoss OMM

Small gerotor type motor

Quantity
Available to order


Description

Types: OMM, OMM EM, OMM EMD

Sizes: 8, 10, 12.5, 20, 32, 40, 50, 70 [cm3/rev]

Application examples: Sweepers, spreaders (salt, fertiliser, etc.), smaller conveyors, etc.

Danfoss Technical Information

I case you need a seal kit or complete motor, please always prodive us the full type and part no. of the motor, for example:

OMM 32, 151G0003; or OMM 8 EM, 11091814




Properties of the Danfoss OMM motors we keep on our stock (European, standard versions):
Hydraulic ports:
- A-B 3/8" BSP
- drain: 1/8" BSP
Shaft:
- d=16 mm, cylindrical with key
Mounting flange:
- Standard OMM (3x M6 internal threads on 45mm diameter, flange diameter: 31.5mm)
Direction of ports
- Radial or axial


TypePart no.
radial ports
Part no.
axial
ports
Hydraulic
size
[cm3/rev]
Max.
continous speed
[rpm]
Max.
continous
torque
[Nm]
Max.
continous
power
output
[kW]
Max.
continous
pressure
drop
[bar]
Max.
continous
oil flow [l/min]
Min. starting torque
[Nm]
Min. speed
[rpm]
OMM 8 151G0041 151G0040 8.2 1950 11 1.8 100 16 7 50
OMM 12.5 151G0004 151G0001 12.5 1550 16 2.4 100 20 12 40
OMM 20 151G0005 151G0002 19.9 1000 25 2.4 100 20 21 30

OMM 32

151G0006

151G0003

31.6

630 40 2.4 100 20 34 30
OMM 40 151G0279 151G0277 39.8 500 45 2.2 90 20 38 30
OMM 50 151G0013 151G0037 50 400 46 1.8 70 20 41 30

In case you need a different configuration, please contact us!
