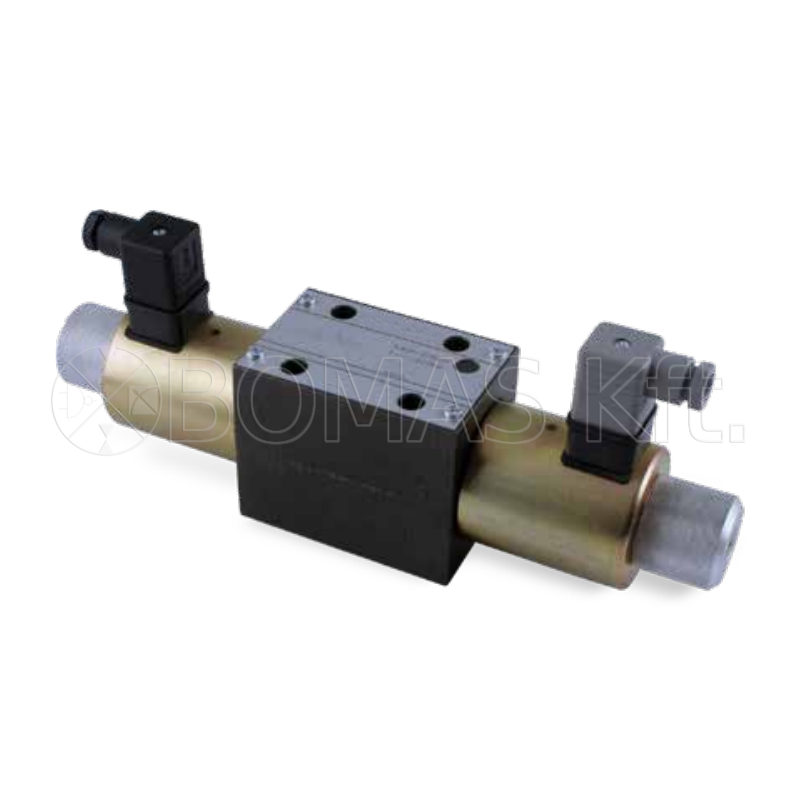

Directional Solenoid Valves CETOP 5
Movement control (cylinder and motor).
Description
CETOP 5 SPOOL VALVES ELECTRIC CONTROL - ISO 4401
Specifications:
- Installation standards ISO 4401, DIN 24340 NG 10.
- Body - bi-chromate plating.
- Either DC or AC, 45 W power.
- Voltage: 12, 24, 48, 110 and 220 V.
| Flow rate (l/min) | Max. pressure P-A-B | Max. pressure T |
| See chart | 315 | 210 |
| Symbol | Type of spool valve | Reference 12V | Reference 24V |
 |
C | D51012CCRK | D51024CCRK |
 |
X | D51012CXRK | D51024CXRK |
 |
V | D51012CVRK | D51024CVRK |
 |
S | D51012CSRK | D51024CSRK |
 |
R | D51012CRRK | D51024CRRK |
 |
P | D51012CPR* | D51024CPR* |
 |
N | D51012CNRK | D51024CNRK |
 |
L | D52012CLRK | D52024CLRK |
 |
K | D52012CKRK | D52024CKRK |
 |
J | D52012CJRK | D52024CJRK |
 |
G | D52012CGRK | D52024CGRK |
* Negative recovery. Used to divert a flow without risk of overpressure
